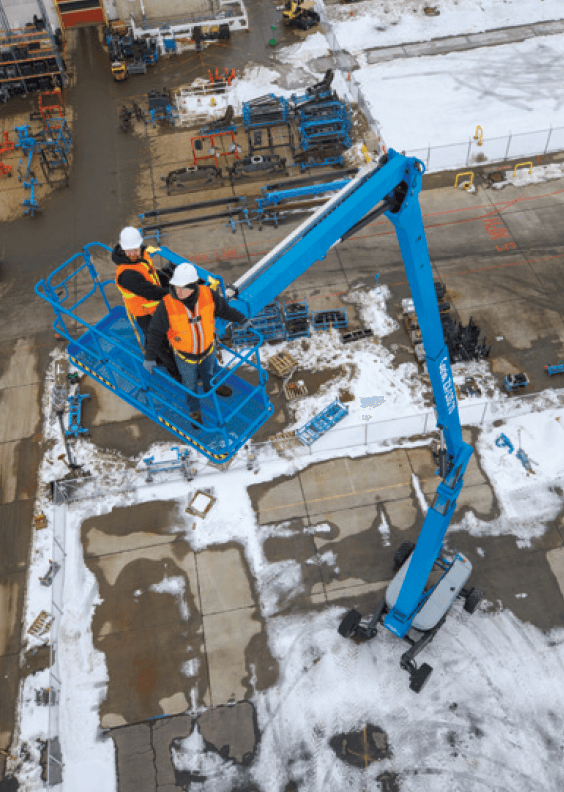

Knuckle Boom – Rough Terrain 135ft

20ft/6.10m Jib-Extend

Mini XChassis

>75ft/23m up and Over

Measurements	Metric	US
Working height max.(1)	43.15 m	141 ft
Platform height max.	41.15 m	135 ft
Below ground reach	5.87 m	19 ft 3 in
Horizontal reach max. - riser extended	18.03 m	59 ft 2 in
Horizontal reach max. - riser retracted	21.26 m	69 ft 9 in
Up and over clearance max. - riser extended	23.01 m	75 ft 6 in
Up and over clearance max. - riser retracted	9.91 m	32 ft 6 in
A Platform length (8 ft/6 ft)	0.91 m / 0.76 m	3 ft/2 ft 6 in
B Platform width (8 ft/6 ft)	2.44 m / 1.83 m	8 ft/6 ft
C Height - stowed	3.09 m	10 ft 1.5 in
D Length - stowed	12.93 m	42 ft 5 in
E Width (axles retracted)	2.49 m	8 ft 2 in
E Width (axles extended)	3.94 m	12 ft 11 in
F Wheelbase (axles retracted)	4.11 m	13 ft 6 in
F Wheelbase (axles extended)	4.11 m	13 ft 6 in
H Ground clearance - center	0.38 m	1 ft 3 in
Productivity
Lift capacity max. - unrestricted	272 kg	600 lb
Platform rotation	160°	160°
Jib length	3.66 / 6.10 m	12 / 20 ft
Vertical jib rotation	110°	110°
Turntable rotation	360°	360°
Drive speed - stowed(2)	4.8 km/h	3.0 mph
Drive speed - raised	1.1 km/h	0.68 mph
Gradeability - stowed(2)	45 %	45 %
Tilt sensor activation (front to back/side to side)	4.5° / 4.5°	4.5° / 4.5°
Turning radius - inside/outside (axle retracted)	8.03 m / 9.96 m	26 ft 4 in / 32 ft 8 in
Turning radius - inside/outside (axle extended)	2.90 m / 6.17 m	9 ft 6 in / 20 ft 3 in
Tires (foam-filled)	445 D50 / 710	445 D50 / 710
Power
Power	Diesel	Diesel
Auxiliary power unit	12 V DC	12 V DC
Hydraulic tank capacity	246.1 L	65 gal
Fuel tank capacity	151 L	40 gal
Weight(3) and Floor Loading(4)
Weight	21,092 kg	46,500 lb
Tire contact pressure	896 kPa	130 psi
Occupied floor pressure (tires)	9.99 kPa	209 psf
Sound and Vibration Levels
Sound Pressure level (ground workstation)	85 dBA	85 dBA
Sound Pressure level (platform workstation)	74 dBA	74 dBA
Vibrations	2.5 m/s2	8 ft 2 in/s²
